| TYPE | POLE | L | A | B | C | Current Rating Amps @ 600 V |
| VT- 2 | 2 | 16.6 | ______ | 18.6 | 18.6 | |
| VT-2A | 2 | 16.2 | ______ | 18.8 | 18.7 | |
| VT- 4 | 4 | 36.5 | 10 | 21 | 21.4 | |
| VT-6 | 12 | 94 | 8 | 17.7 | 14.4 | |
| VT- 12 | 12 | 117.5 | 10 | 19 | 15.4 | |
| VT- 10 | 12 | 117.5 | 10 | 21 | 19.5 | |
| VT- 16 | 12 | 140 | 12 | 23 | 19.3 | |
| VT- 45 | 12 | 174.5 | 15 | 27 | 26.5 | |
Double Row Barrier Terminal Strips up to 22 Ways - Type BT- 10 Series
| Technical Specification | |
| Current Rating | 15 Amp. 1100 V |
| H ≥ Test | 2 KV for 1 min |
| Insulation | ≥ 100 Mega ohms |
| Material Specification | |
| Body | High Gread Engg.Plastic/ PA/ PBT |
| Conductor | Brass Tin Plated |
| Screw | Brass Nickle Plated |
| Pitch | 9.5 mm |
Double Row Barrier Terminal Strips up to 16 ways- Type BT- 30 Series
| Technical Specification | |
| Current Rating | 20 Amp. 1100 V |
| H ≥ Test | 2 KV for 1 min |
| Insulation | ≥ 100 Mega ohms |
| Material Specification | |
| Body | Bakelite |
| Conductor | Brass Tin Plated |
| Screw | Brass Nickle Plated |
| Pitch | 11 mm |
Single Row High Barrier Terminals up to 22 ways -Type HBT- 8
| Technical Specification | |
| Current Rating | 15 Amps/ 300 V |
| H ≥ Test | 2 KV for 1 min |
| Insulation | ≥ 100 Mega ohms at 500 V.DC |
| Material Specification | |
| Body | High Gread Engg.Plastic/ PA/ PBT |
| Conductor | Brass Tin Plated |
| Screw | Brass Nickle Plated |
| Pitch | 8.4 mm |
Single Row High Barrier Terminals up to 22 Ways - Type HBT- 10
| Technical Specification | |
| Current Rating | 20 Amps/ 300 V |
| H ≥ Test | 2 KV for 1 min |
| Insulation | ≥ 100 Mega ohms at 500 V.DC |
| Material Specification | |
| Body | High Gread Engg.Plastic/ PA/ PBT |
| Conductor | Brass Tin Plated |
| Screw | Brass Nickle Plated |
| Pitch | 9.5 mm |

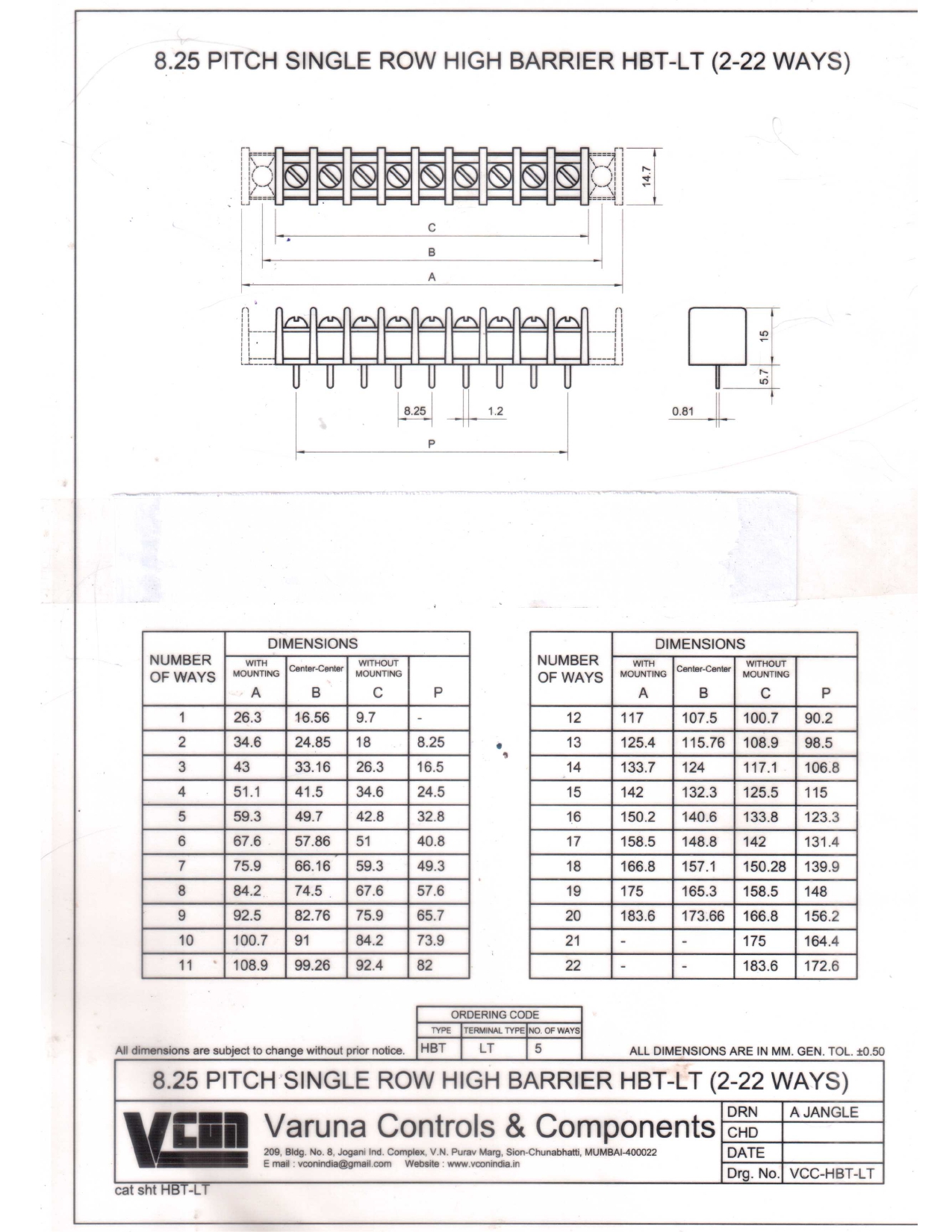

Single Row High Barrier Terminals up to 22 Ways - Type HBT- 8/ LT
| Technical Specification | |
| Current Rating | 15 Amps/ 300 V |
| H ≥ Test | 2 KV for 1 min |
| Insulation | ≥ 100 Mega ohms |
| Material Specification | |
| Body | High Gread Engg.Plastic/ PA/ PBT |
| Conductor | Brass Tin Plated |
| Screw | Brass Nickle Plated |
| Pitch | 8.25 mm |
Single Row High Barrier Terminals up to 22 Ways - Type HBT- 8A
| Technical Specification | |
| Current Rating | 15 Amps/ 300 V |
| H ≥ Test | 2 KV for 1 min |
| Insulation | ≥ 100 Mega ohms |
| Material Specification | |
| Body | High Gread Engg.Plastic/ PA/ PBT |
| Conductor | Brass Tin Plated |
| Screw | Brass Nickle Plated |
| Pitch | 8.33 mm |
Interlocking PCB Terminal single way- Two Pin - Type SBT- 10
| Technical Specification | |
| Current Rating | 20 Amps/ 300 V |
| H ≥ Test | 2 KV for 1 min |
| Insulation | ≥ 100 Mega ohms |
| Material Specification | |
| Body | High Gread Engg.Plastic/ PA/ PBT |
| Conductor | Brass Tin Plated |
| Screw | Brass Nickle Plated |
| Pitch | 9.5 mm x 10.5 mm |

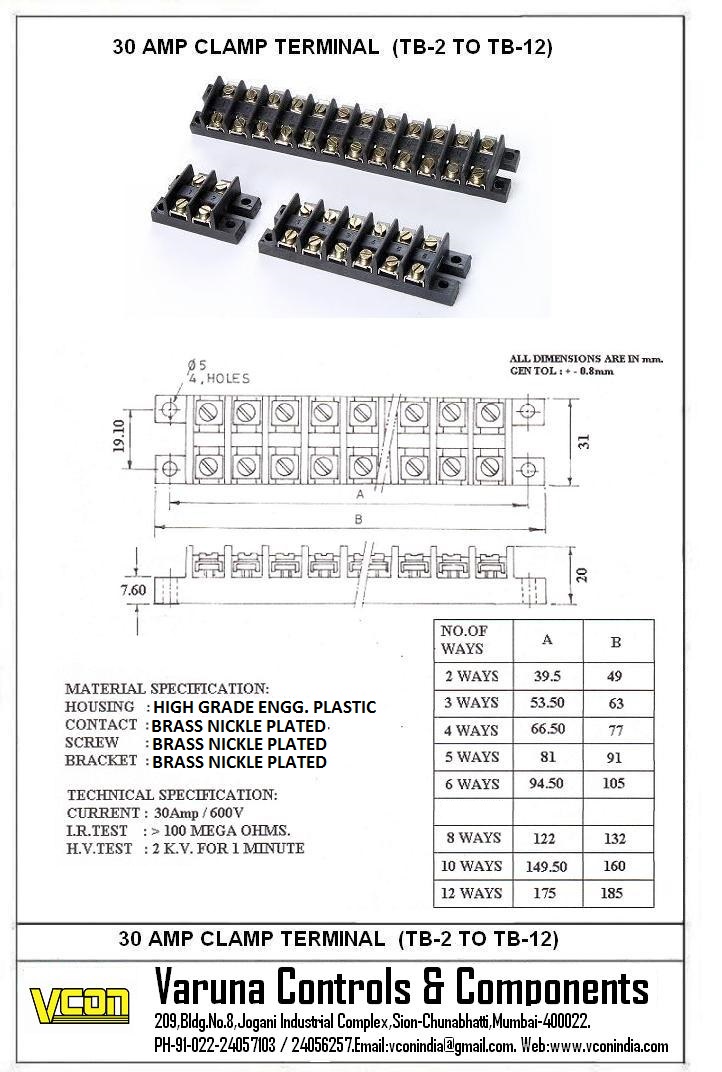

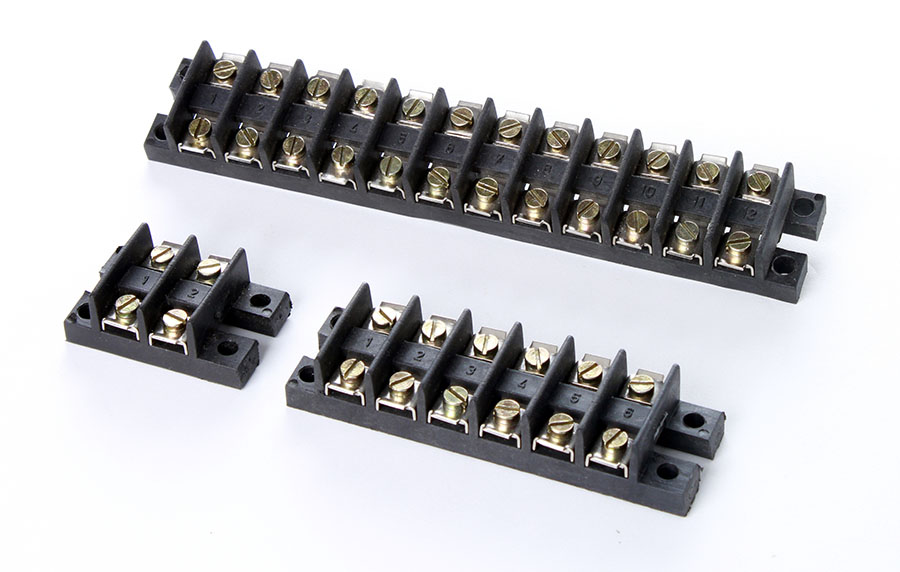

Clam Connectors TB 2 to 12 Ways - Type TB Series
| Technical Specification | |
| Current Rating | 30 Amps/ 600 V |
| H ≥ Test | 2 KV for 1 min |
| Insulation | ≥ 100 Mega ohms |
| Material Specification | |
| Body | Plastic |
| Conductor | Brass Nickle Plated |
| Screw | MS Nickle Blue Zink Plated |
| Brackets | MS Nickle Blue Zink Plated |

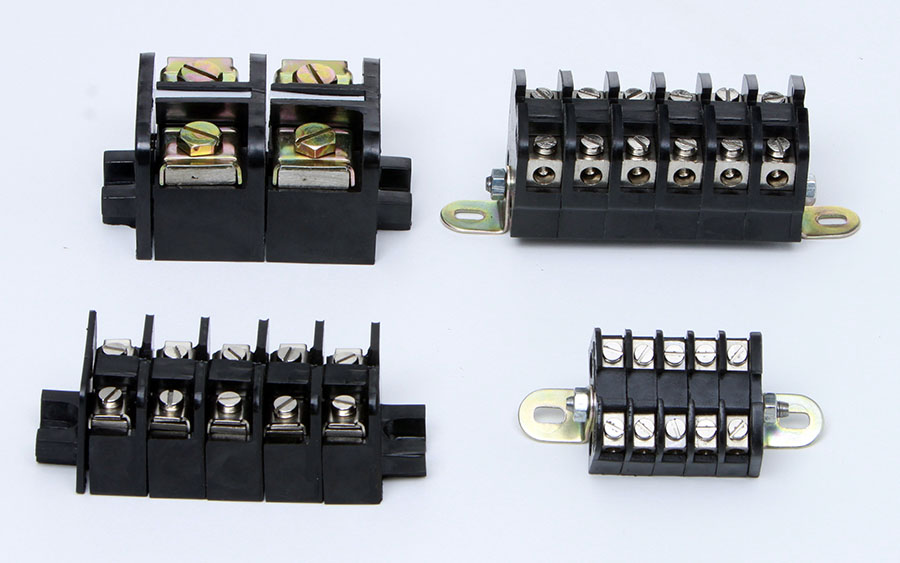

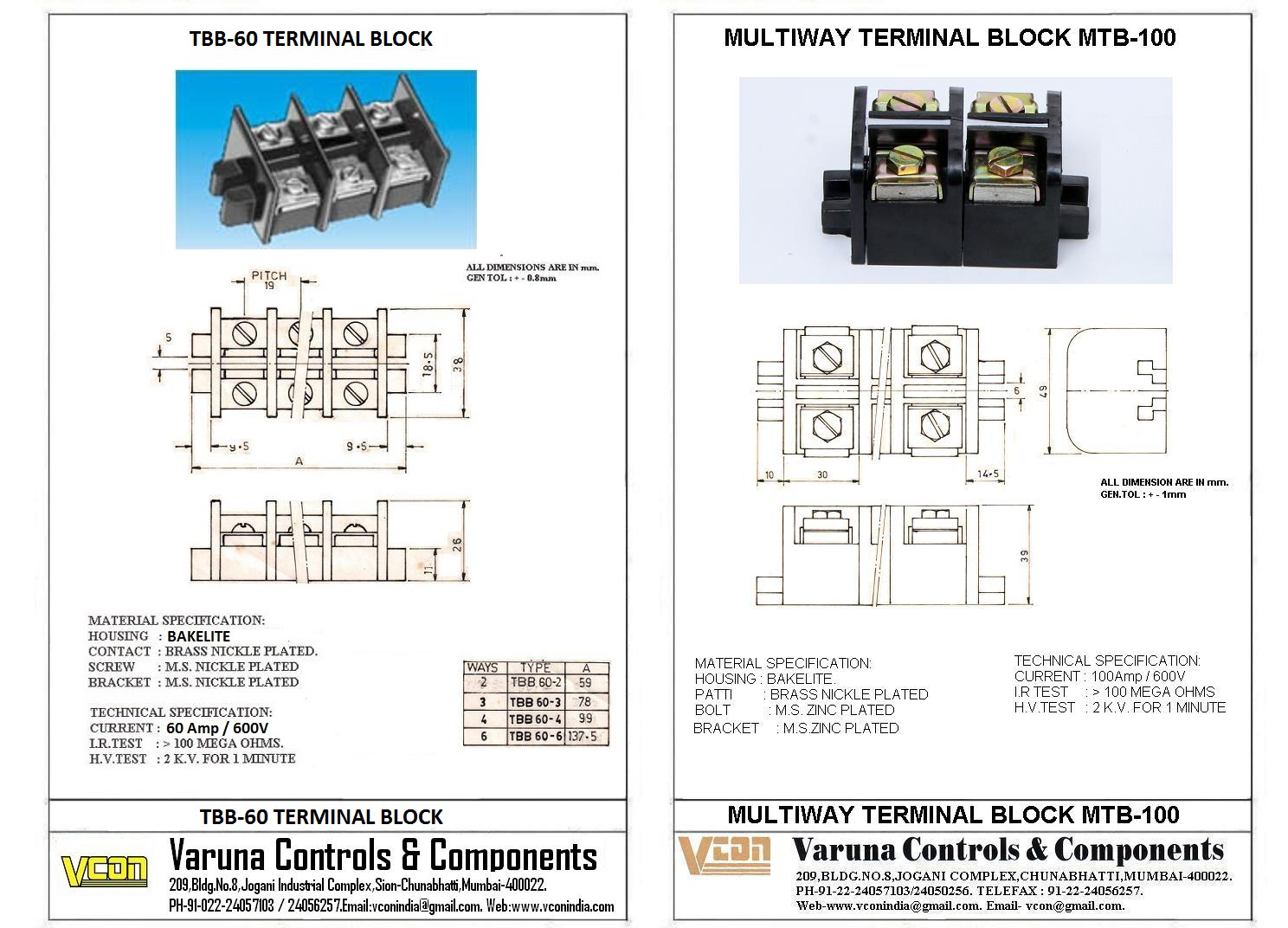

Multiway Terminal Block- Type MTB- 20/ 30/ 60/ 100 (Against Bulk Order)
| Technical Specification | |
| Current Rating | 60 & 100 Amps/ 600 |
| H ≥ Test | 2 KV for 1 min |
| Insulation | ≥ 100 Mega ohms |
| Material Specification | |
| Body | Bakelite |
| Conductor | Brass Nickle Plated |
| Screw | MS Nickle Blue Zink/ Plated/ Trivalent Plated |
| Brackets | MS Nickle Zink/ Trivalent Plated |
| Nuts & Rod | MS Nickle/ Zink Plated |

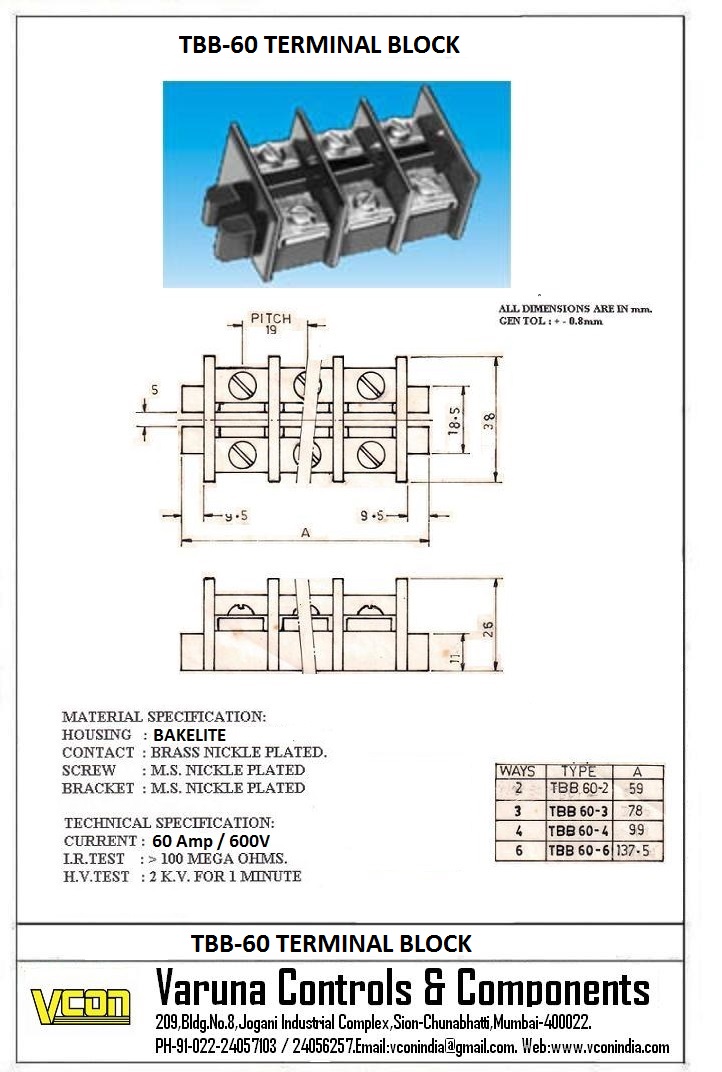

Clam Connectors - Type TBB- 60 (On Request)
| Technical Specification | |
| Current Rating | 60 Amps/ 600 V |
| H ≥ Test | 2 KV for 1 min |
| Insulation | ≥ 100 Mega ohms |
| Material Specification | |
| Body | Bakelite |
| Conductor | Brass Nickle Plated |
| Screw | MS/ Nickle/ Zink Plated |
| Brackets | MS/ Nickle/ Zink Plated |
